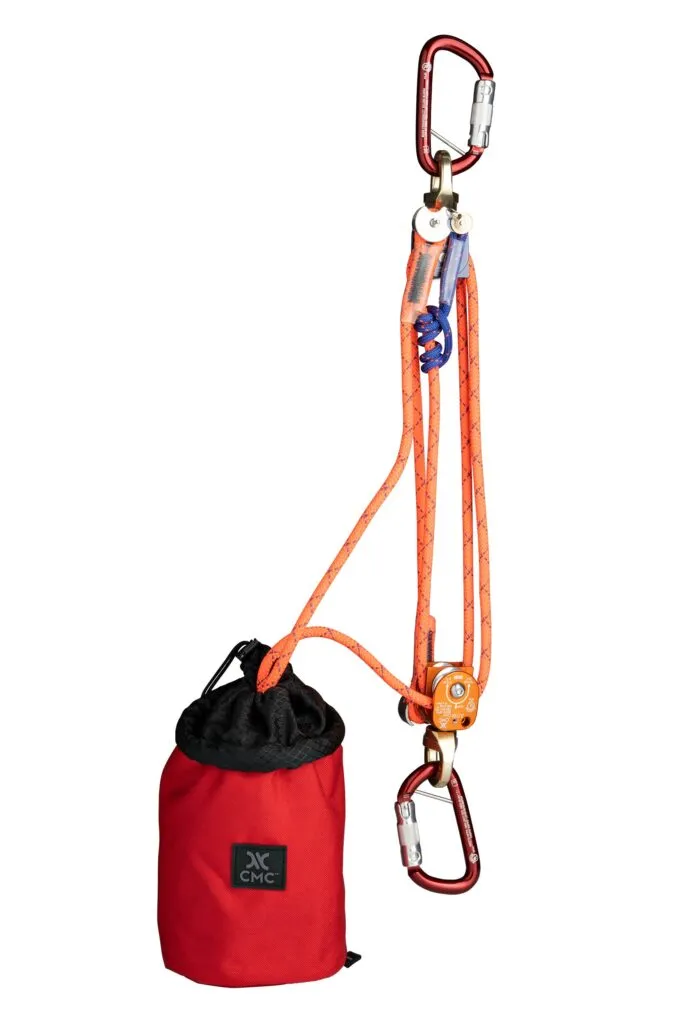

The AZTEK ProSeries LT (Load Tender) is a more compact version of the AZTEK ProSeries System on page 114. Reflecting attention to detail, the LT system includes 8.5 m (28 ft) of 8 mm AZTEK ProSeries Cord that can extend the set-of-fours up to 6 feet, providing a 4:1 or 5:1 mechanical advantage with an MBS of 38 kN (8,542 lbf). The LT System includes two ProTech™ Auto-Lock Carabiners with removable keeper pins for attachment to swivel ends.

AZTEK ProSeries LT System Comes Fully Assembled and Includes

•AZTEK Omni Pulley Set (one blue, one orange) UL Classified to NFPA 1983
•Quick Pin for AZTEK Omni Pulley
•AZTEK ProSeries Cord 15 kN (3,372 lbf), 8-mm, Hi-Viz orange 8.5 m (28 ft) w/ Sewn-Eye Termination 12 kN (2,698 lbf)
•2 ProTech Aluminum Auto-Lock Carabiners with removable keeper pin 29 kN (6,519 lbf) UL Classified to NFPA 1983
•AZTEK Bound-Loop Prusik blue (6 mm diameter) – 229 mm (9 in)
•AZTEK Bound-Loop Purcell blue (6 mm diameter) – 1.06 m (42 in)
•Maillon Rapide Quick Link Oval (7 mm) – 25 kN (5,620 lbf)
•AZTEK Storage Bag with quick connect attachment



Available Rigging Solutions Include

•Adjust litter attendant position, low/high
•High-angle attendant tether
•High-angle litter scoops
•Solo pick-off
•Personal mechanical advantage
•Knot passing
•Transfer loads
•Correcting disoriented equipment under load
•Establish dynamic fixed brakes
•Pre-tensioned back-ties
•Redirect anchors
•Load-releasing hitch
•Tensioned guying
